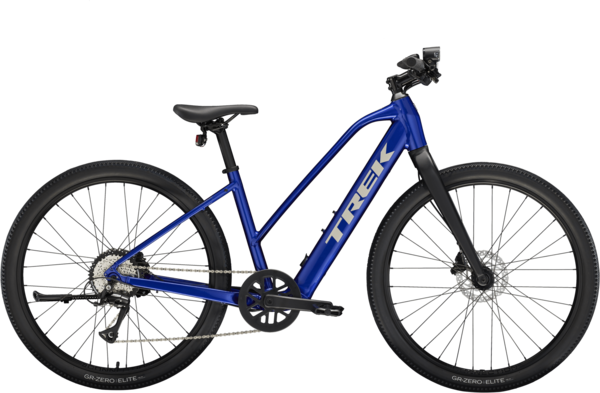

Trek Dual Sport+ 2 Mid-Step LT
Details
Dual Sport+ 2 Mid-step LT is a lightweight and capable hybrid electric bike that’s designed for adventure on pavement and light trails. It has an intuitive and natural-feeling pedal assist system that makes exploring your surroundings more fun and cruising up hills a breeze. Plus, stiff wheels and wide tires give you confidence on varied terrain.
It's right for you if...
You want a lightweight, simple to use hybrid e-bike that brings a capable boost to daily errands and rides as well as weekend adventures. You love the added confidence and ease of a stagger frame design that makes hopping on and off simple.
The tech you get
A lightweight aluminum frame with a midstep design that's easier to hop on and off, Trek's proprietary pedal assist system by Hyena with a hub motor (250W, 40Nm) that assists up to 20mph, and a 250Wh battery for a range of up to 35 miles per charge. Plus, strong 650b wheels and wide 50c tires for capability and comfort on varied terrain, a reliable 8-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery, and a kickstand.
The final word
All the capability and confidence of Dual Sport, with an electric boost that helps you do more! Dual Sport+ lets you haul groceries uphill with ease and adventure farther than you thought possible.
Why you'll love it
- This a superlight hybrid e-bike, making it easier to maneuver while parking and less of a pain to carry up stairs
- The pedal assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting
- Stiff wheels and wide tires give you the terrain-smoothing comfort and confidence of a suspension fork without the added weight
- It's easy to accessorize with fenders and a rear rack to carry everything you need
- Double your range with a 250Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame
| Frame Size | Small | Medium | Large |
|---|---|---|---|
| Wheel size | 27.5" | 27.5" | 27.5" |
| Seat tube (cm) | 40.8 | 46.3 | 50.7 |
| Seat tube angle | 73.5° | 73.0° | 73.0° |
| Head tube length (cm) | 15.5 | 17 | 20 |
| Head angle | 70.0° | 70.5° | 71.0° |
| Effective top tube (cm) | 56.9 | 57.4 | 59.2 |
| Bottom bracket height (cm) | 27.8 | 27.8 | 27.8 |
| Bottom bracket drop (cm) | 7 | 7 | 7 |
| Chainstay length (cm) | 46.8 | 46.8 | 46.8 |
| Offset (cm) | 5 | 5 | 5 |
| Trail (cm) | 7.6 | 7.3 | 6.9 |
| Wheelbase (cm) | 109.2 | 109.5 | 110.9 |
| Standover (cm) | 65.5 | 67.2 | 69.3 |
| Frame reach (cm) | 38.2 | 38.5 | 39.3 |
| Frame stack (cm) | 60.4 | 62 | 65 |
| Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| Small | 155 - 165 cm | 5'1" - 5'5" |
| Medium | 165 - 175 cm | 5'5" - 5'9" |
| Large | 175 - 186 cm | 5'9" - 6'1" |
Specs
| Frame | Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing |
|---|---|
| Fork | DS+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
| Rims | Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
| Hubs |
Front: Formula DC-20, alloy, 6-bolt, 5x100mm QR Rear: Hyena hub drive motor, 40Nm, 250W |
| Spokes | 14g stainless steel, black |
| Tires | Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50mm |
| Bottom Bracket | Torque sensor, threaded, 122.5mm spindle |
| Crankset | ProWheel Pro alloy, 42T narrow-wide steel ring, 170/175mm length |
| Shifters | Shimano M315, 8 speed |
| Rear Derailleur | Shimano Acera M3020-8, 40T max cog |
| Cassette/Freewheel | Shimano HG400, 11-40, 8 speed |
| Chain | KMC Z8.3 |
| Brakes | Shimano hydraulic disc, MT200 lever, UR300 caliper |
| Rotors | Shimano RT26, 6-bolt, 160mm |
| Handlebars | Bontrager alloy, 31.8mm, 15mm rise, 660/690mm width |
| Tape/Grips | Bontrager XR Endurance Comp, lock-on |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90/100mm length |
| Seatpost | Bontrager alloy, 31.6mm, 12mm offset, 330/400mm length |
| Saddle | Bontrager Sport Women's |
| Pedals | Bontrager City pedals |
| Accessories & Extras | Herrmans MR4, 120 lumen, 40 lux, LED, headlight, Spanninga Solo, taillight, Adjustable length alloy kickstand |
| Battery | 250Wh, integrated in down tube |
| Controller/Display | LED display |
| Charger | 2A, 42V output, 100V-240V AC input |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Hex Blue / Small / 27.5-Inch | 768682230114 | 5293868 | DUA24484074E |
| Hex Blue / Medium / 27.5-Inch | 768682230398 | 5293869 | DUA24389668E |
| Hex Blue / Large / 27.5-Inch | 768682230251 | 5293870 | DUA24591366E |
